AI Astrology Chatbot: Western, Vedic, Tarot & More

Open source AI chatbot that runs real Western astrology, Vedic kundli, numerology, tarot, Human Design, forecast timelines, biorhythm, I Ching, crystals, dreams, and angel numbers calculations. Powered by RoxyAPI, not LLM hallucinations.

Ships with auto-discovered remote MCP tools, multi-provider LLM support (Gemini, Claude, GPT), and an interface built to be shown to customers: light and dark, a collapsible conversation list, and every chart drawn in the palette you choose.

Clone. Add keys. Deploy. Live AI astrology chatbot in 30 minutes.

Dark	Light

Why This Exists

Most AI astrology chatbots hallucinate planet positions, make up tarot spreads, and invent numerology results. This one calls the 255+ verified tools at RoxyAPI via MCP (Model Context Protocol), gets real computed data from astronomical ephemeris engines and mathematical models, then has the LLM interpret it. Every birth chart, every tarot draw, every Life Path calculation is backed by actual computation.

17 spiritual domains plus location geocoding. Auto-discovered tools via MCP. Multilingual. Any LLM.

Responds in the language the person writes in: Hindi, Spanish, French, German, Japanese, and more.

Quick Start

git clone https://github.com/RoxyAPI/astrology-ai-chatbot.git
cd astrology-ai-chatbot
npm install
cp .env.example .env.local
# Add your keys to .env.local
npm run dev

Open localhost:3000 and start chatting.

You need two keys:

Choose Your LLM

Swap providers with one env var. All three use the unified interface in the Vercel AI SDK, same code, different model:

LLM_PROVIDER=gemini
GOOGLE_GENERATIVE_AI_API_KEY=your_key

How It Works

User message → LLM picks a tool → MCP calls RoxyAPI → Real data returned → LLM interprets → Streams to user

1. User asks a question ("What does my Saturn placement mean?")
2. The LLM selects the right tool from 160+ auto-discovered MCP tools
3. RoxyAPI computes the answer from verified astronomical/mathematical engines
4. The LLM interprets the structured data into a natural, personalized response
5. Response streams back in real-time with markdown formatting

No prompt-stuffing. No fake data. No hardcoded horoscopes.

Widgets From Tool Calls

Ask for a tarot card and the card is drawn on screen, art and all, above the reading the model writes. Ask for a natal chart and the wheel renders with its aspect lines, planet list, and aspect grid, in the same message as the interpretation.

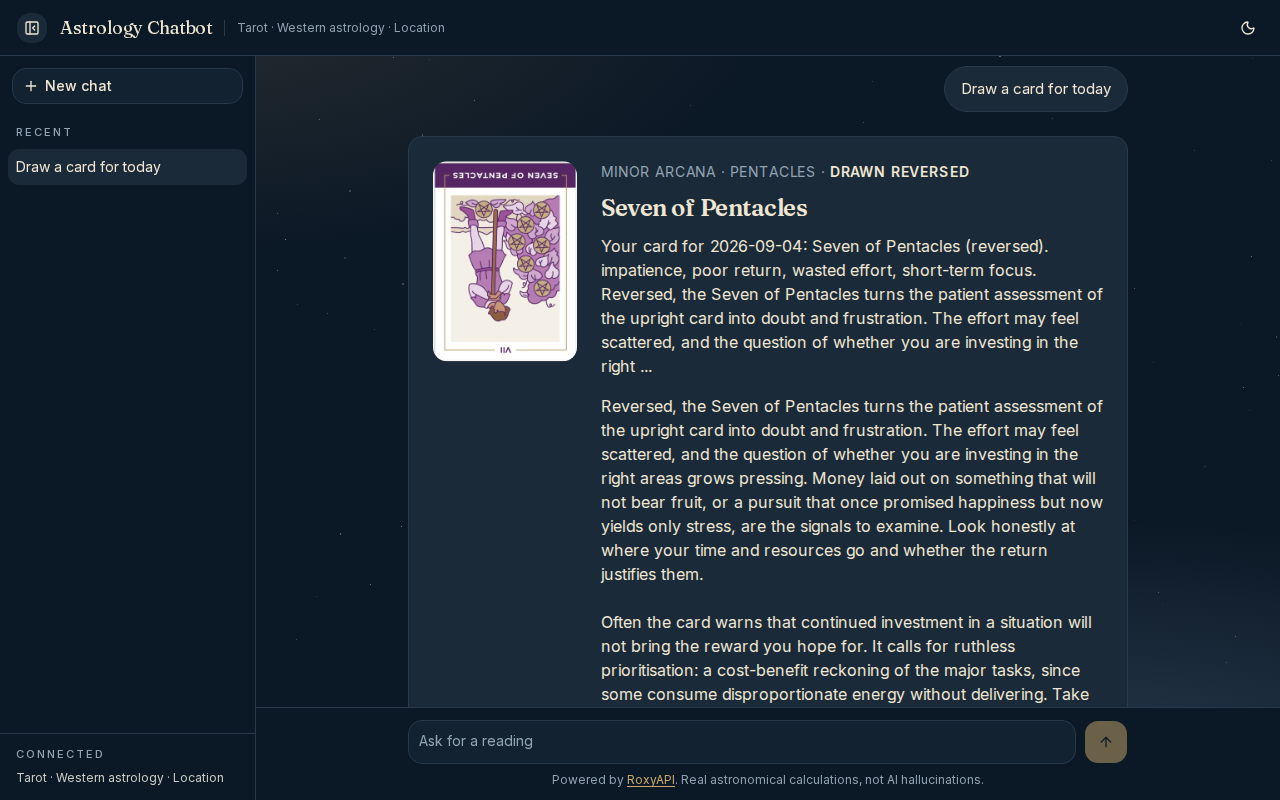

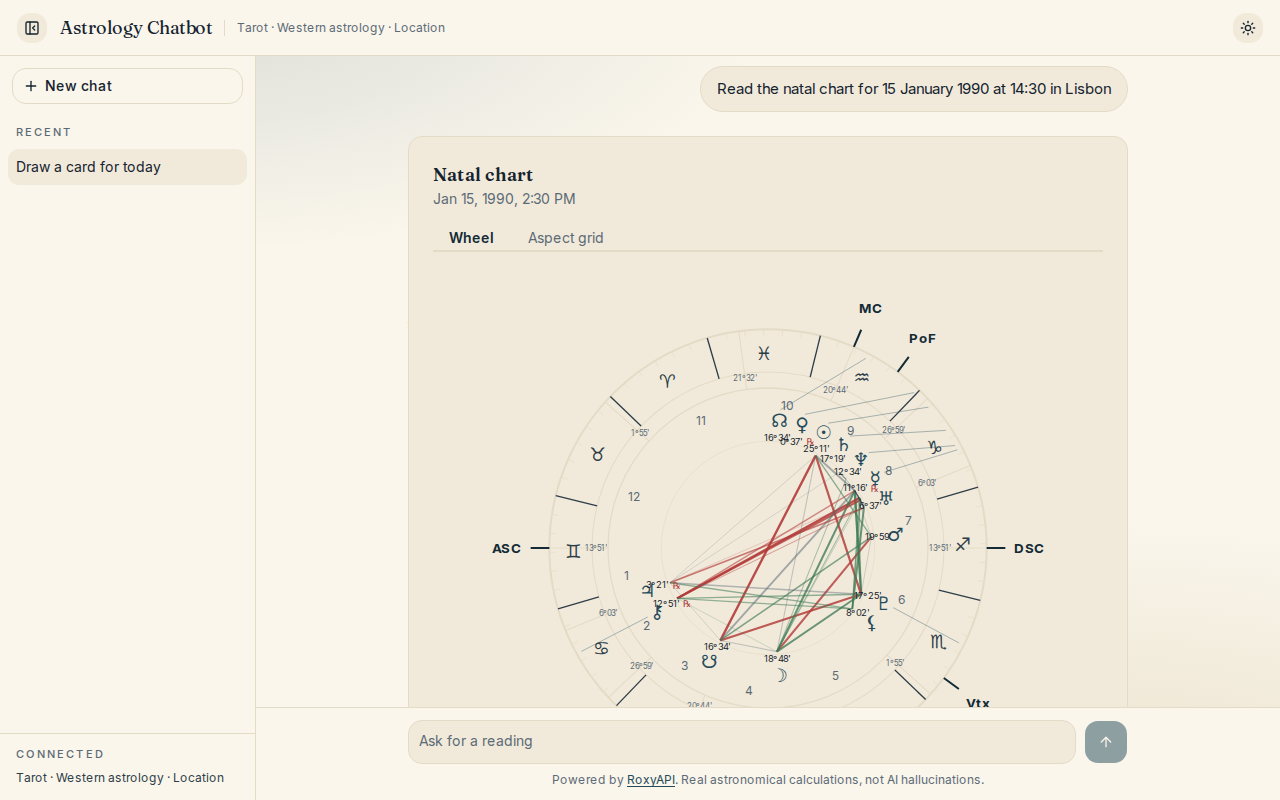

Tarot card, dark	Natal wheel, light

Nothing is wired per tool. @roxyapi/ui-react carries a lookup from the tool name the model used to the component that draws its result, so every domain you enable renders itself. A tool no component covers, a reference lookup for instance, simply keeps the written answer.

Widgets wear the chat palette rather than a theme of their own. Every surface, ink, border, status colour, face and corner a drawing paints comes from a --roxy-* token, and globals.css points the whole set at the app palette in one block, so a chart is the same material as the page it arrives on:

:root {
  --roxy-surface: var(--card);
  --roxy-accent: var(--primary);
  /* and the rest of the set */
}

Every value is a reference rather than a colour, so the dark palette moves the drawings with everything else and there is no second copy to keep in step. Recolour the palette and the drawings follow, in both themes and at any width. Restyling a component is never the answer, and tests/design-tokens.test.ts fails if a token is given a colour of its own. THEMING.md covers every token, its light and dark default and what it paints. The UI components page lists every component, and the AI chat widgets tutorial covers the same pattern for other chat frameworks and model vendors.

MCP Tool Discovery

This chatbot uses Model Context Protocol (MCP) to automatically discover all available tools from RoxyAPI at runtime. No manual endpoint wiring, all 255+ tools across 17 spiritual domains plus location geocoding are ready to use out of the box.

How MCP connections work

MCP connections are initialized once and cached automatically. The first request after a deploy takes ~1-2 seconds to set up; every request after that reuses the cached tools instantly.

Choosing which products to enable

By default all 18 RoxyAPI products are enabled (~255 tools across 17 spiritual domains plus location for geocoding). To use a subset, set the ROXYAPI_PRODUCTS env var:

# Enable only tarot and astrology (fewer tools = faster model selection)
# Tip: keep `location` enabled whenever you enable a chart product (astrology, vedic-astrology).
# It is what lets the LLM resolve "born in Mumbai" to coordinates before calling the chart.
ROXYAPI_PRODUCTS=tarot,astrology,location

Available product slugs: astrology, vedic-astrology, forecast, human-design, chinese-astrology, feng-shui, mesoamerican-astrology, vastu, numerology, kabbalah, tarot, biorhythm, ayurveda, iching, crystals, dreams, angel-numbers, location. Legacy -api suffixed slugs (e.g. tarot-api) still work for backwards compat. The list that ships is DEFAULT_PRODUCTS in src/lib/mcp.ts, so check there when a new RoxyAPI domain appears.

Tool count recommendations

Tip: If you are building a focused product (e.g. a tarot-only app), set ROXYAPI_PRODUCTS=tarot to give the LLM fewer options and faster, more accurate tool selection.

Architecture

src/
├── app/
│   ├── api/chat/route.ts     # Chat endpoint, streamText + MCP tools
│   ├── layout.tsx            # Root layout, the two typefaces, theme provider, metadata
│   ├── page.tsx              # Home page with structured data
│   └── globals.css           # The design system: light palette, dark palette, widget bridge
├── components/
│   ├── chat/
│   │   ├── ChatShell.tsx     # Header, sidebar, transcript, conversation switching
│   │   ├── ChatHeader.tsx    # Wordmark, connected domains, theme and view controls
│   │   ├── ChatSidebar.tsx   # New chat, recent conversations, connected list
│   │   ├── ChatPanel.tsx     # One conversation: transcript, composer, attribution
│   │   ├── MessageList.tsx   # Transcript, opening screen, four openers
│   │   ├── MessageBubble.tsx # One turn, markdown for the reply
│   │   ├── MessageInput.tsx  # Growing composer, send and stop
│   │   └── ToolWidget.tsx    # Draws the components a tool result earned
│   ├── theme-provider.tsx    # Light and dark, remembered
│   ├── theme-toggle.tsx      # The control in the header
│   └── StarField.tsx         # The night sky, seeded so it hydrates cleanly
└── lib/
    ├── ai.ts                 # Multi-provider LLM config (Gemini/Claude/GPT)
    ├── mcp.ts                # MCP client, connects to RoxyAPI and caches all tools
    ├── prompts.ts            # System prompt, personality, capabilities, multilingual
    ├── tool-widgets.ts       # Maps a tool result to the component that renders it
    ├── conversations.ts      # Recent conversations, kept in the browser only
    └── domains.ts            # The reading name for each connected product

Key design decisions:

• MCP over REST: tools are auto-discovered from the RoxyAPI MCP servers. No manual endpoint definitions needed.
• Persistent MCP connections: connections are initialized once and cached. No per-request overhead.
• Server-side only: all API keys stay in the Next.js API route. Nothing leaks to the client bundle.
• Model agnostic: Vercel AI SDK v6 abstracts the LLM. Swap Gemini for Claude or GPT with one env var.
• SSR + JSON-LD: structured data and meta tags render server-side for search engine visibility.

Features

• Tool result widgets: a tarot card, natal wheel, or bodygraph renders above the interpretation, in the palette you chose
• Light and dark: dark on a first visit, one control in the header, and the choice is remembered. The drawn charts follow the switch
• Conversation history: recent conversations listed in the sidebar, kept in the browser under one key and bounded at twenty. Nothing is sent anywhere and there is no account
• Collapsible sidebar: a panel on a wide screen, a drawer on a phone, closed with the escape key
• Markdown responses: assistant messages render with full markdown support (headings, bold, lists, code blocks, tables, links). A wide table scrolls in its own frame
• A composer that behaves: grows with what you type up to a cap, enter sends, shift and enter makes a newline, and a second submit cannot start a second turn
• Stop button: cancel a long-running response mid-stream
• Rate limiting: built-in per-IP rate limiter (20 req/min) to protect LLM API credits
• Input validation: request body validation with message count cap to prevent abuse
• Security headers: X-Content-Type-Options, X-Frame-Options, Referrer-Policy
• Accessible: zero axe violations in both themes, a visible focus ring on every control, role="log" on the transcript, and reduced motion respected

Stack

Customize

AI personality: edit src/lib/prompts.ts. Make it mystical, clinical, casual, or match your brand.

Which domains: set the ROXYAPI_PRODUCTS env var, or edit the product list in src/lib/mcp.ts.

Colours: the whole product is two blocks in globals.css, :root for light and .dark for dark. Edit those and everything follows, the drawn charts included, because every --roxy-* token is a reference into the same palette. npm test fails if a token goes missing from one theme.

Typefaces: two families in layout.tsx, loaded through next/font as CSS variables. Swap a face there and in the matching line of globals.css.

Layout and copy: the screen is in src/components/chat/. The openings offered on an empty screen are in src/lib/domains.ts, each tagged with the product that answers it, so trimming ROXYAPI_PRODUCTS never offers a reading your deployment cannot give. Everything is Tailwind, no CSS-in-JS.

Tool step limit: set MAX_TOOL_STEPS in your env to control how many tool-call round-trips the LLM can make per message (default: 5).

Environment Variables

Deploy

One-click deploy to Vercel:

Or deploy anywhere that runs Node.js:

npm run build && npm start

Security

• API keys are server-side only, never exposed to the browser
• All RoxyAPI calls happen in the Next.js API route via MCP, not the client
• Per-IP rate limiting on the chat endpoint (20 requests/minute)
• Request body validation with message count limits
• Security headers (X-Content-Type-Options, X-Frame-Options, Referrer-Policy)
• Markdown rendered safely via react-markdown (no dangerouslySetInnerHTML, HTML is escaped)
• External links use rel="noopener noreferrer" to prevent tab-nabbing

FAQ

How many tools can the LLM handle?

The default setup exposes ~255 tools from 18 RoxyAPI products (17 spiritual domains plus location for geocoding). Modern models like Gemini 2.5 Flash, GPT-5 mini, and Claude Haiku 4.5 handle this well. If you see the model picking the wrong tool or making excessive tool calls, reduce the product count via ROXYAPI_PRODUCTS, fewer tools means faster, more accurate selection.

The chatbot is unstable or sometimes does not respond

This is almost always caused by MCP initialization timing out. The default maxDuration is 60 seconds, which should be enough. If you are on the Vercel Hobby plan (10s limit), upgrade to Pro or reduce the number of products. Also check that your ROXYAPI_KEY is valid.

Do MCP connections stay open forever?

MCP connections persist for the lifetime of your server process. On Vercel, they are refreshed automatically when your function recycles after a period of inactivity. You do not need to manage connection lifecycle manually.

Why is the first message slow?

The first request after a deploy (or after your server has been idle for a while) initializes all MCP connections and fetches tool definitions (~1-2 seconds). Every request after that is instant.

How do I change the AI personality?

Edit the system prompt in src/lib/prompts.ts. The default personality is a warm, knowledgeable spiritual advisor. You can make it more mystical, clinical, casual, or match your brand voice.

Can I disable specific product domains?

Yes. Set ROXYAPI_PRODUCTS in your environment to only include the slugs you want:

ROXYAPI_PRODUCTS=tarot,numerology

Is this free to use?

The code is free and open source. You will need a RoxyAPI key (you can request a free test key to try it out) and an LLM provider key (Gemini has a free tier).

Links

Built with RoxyAPI, the data engine behind real astrology, tarot, and numerology calculations.
